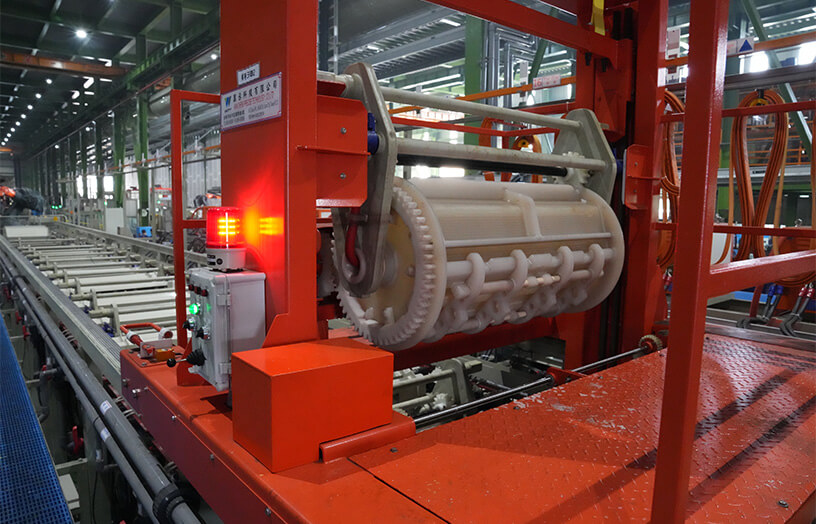

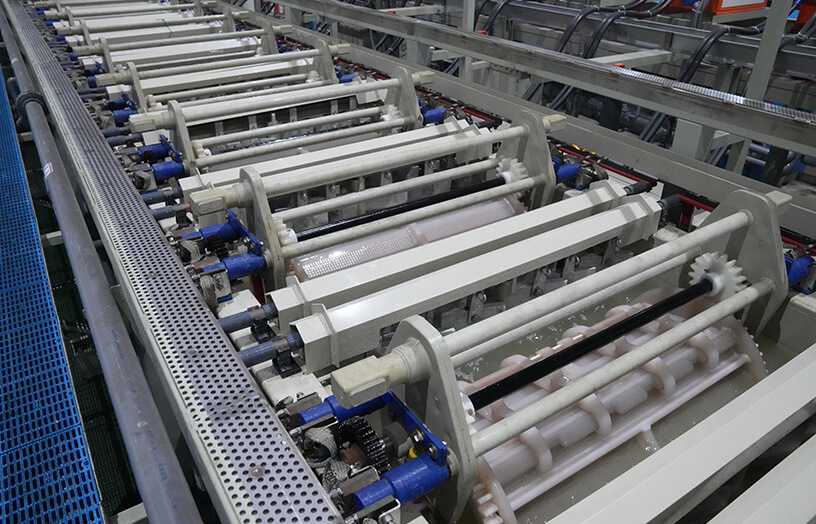

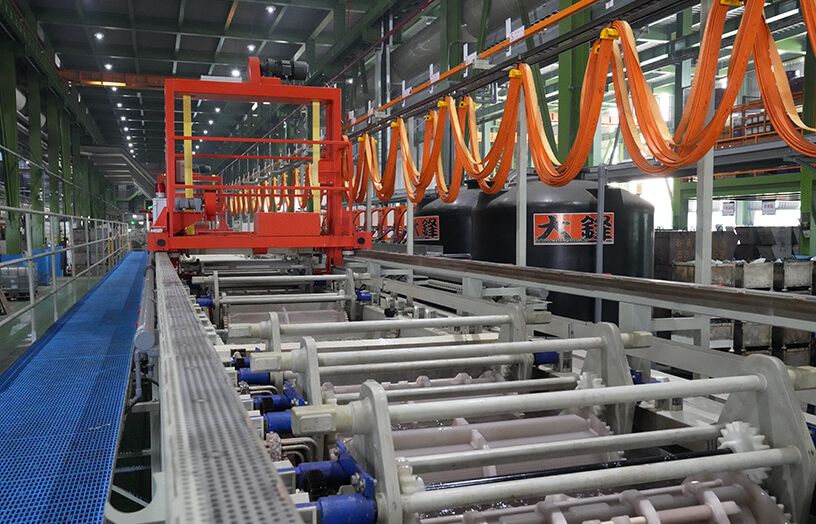

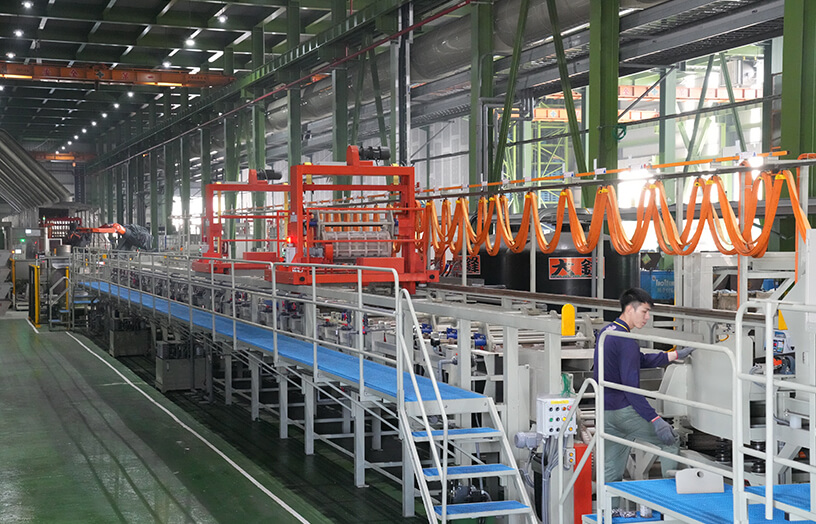

barrel type
Barrel type surface treatment equipment can be designed as either straight-through or U-shaped according to the customer's conditions. Automated controls can also improve product quality and stability.
- Suitable Process
- acid/alkaline zinc plating, phosphate, polishing and zinc-nickel alloy plating, etc.
- Suitable Workpieces
- screws, nuts, general hardware, zippers, electronic components and passive parts, etc.
- Features
-
- Can achieve cleaning and surface treatment processes.
- Various types of barrels are available for selection based on production needs and workpiece conditions.
feature
- octagonal design
- Enhance the rolling ability of the workpiece in the barrel
- material
- Imported from Germany, the P.P. (polypropylene) is resistant to high temperatures and acid-alkaline substances.
- barrel reinforcemen
- Covering the SS400 with P.P. plate extends the service life of the barrel.
- barrel holder
- Covering aluminum with P.P. provides greater durability, reduces the weight of the barrel, and makes it more rugged.
- holes design
- Matching different drilling sizes and shapes with workpieces improves the exchange rate of plating solutions, avoids material blockages, increases plating efficiency, and ensures even thickness.
